Systems Architecture > Identity & Access Management

Architecting the Authoritative HR Identity Database Engine

In enterprise security, identity records should never originate directly inside target directories like Active Directory or Okta. Instead, a central Human Resources database serves as the authoritative Single Source of Truth (SSOT). Here is a deep dive into the design, constraints, and PowerShell interaction mechanics of hr_system.db hosted on server APP1.

SQLite Architecture SSOT Design PSSQLite Interop
DB Browser for SQLite showing employees table on APP1

1. Identity Governance & Single Source of Truth (SSOT)

Ad-hoc identity provisioning leads to "ghost accounts," inconsistent user attributes, and delayed offboarding. By enforcing an upstream Human Resources (HR) system as the authoritative origin, downstream systems automatically reflect real-world employment state transitions.

Upstream Data Flow

HR records (hr_system.db) → Automation Engine (APP1) → Active Directory (DC1) → Cloud IdP (Entra ID / Okta). Access is systematically granted or revoked based on database updates.

Why SQLite for Lab Automation?

SQLite provides a zero-configuration, serverless, self-contained relational database file (C:\IAM_Automation\hr_system.db). It supports full SQL syntax, table constraints, and seamless PowerShell interaction without complex RDBMS overhead.

2. Schema Architecture & Table Definition (DDL)

The database schema is structured around two core operational requirements: maintaining clean identity profiles and recording immutable execution audit entries.

HR System Database Schema — ER Diagram
erDiagram employees { int employee_id PK string first_name string last_name string user_principal_name UK string department string job_title string status "Active | Transferred | Terminated" datetime created_at } jml_sync_log { int log_id PK int employee_id FK string action_type "JOINER | MOVER | LEAVER" string status "SUCCESS | FAILED" string details datetime timestamp } employees ||--o{ jml_sync_log : "generates audit log"
Authoritative Employees Table

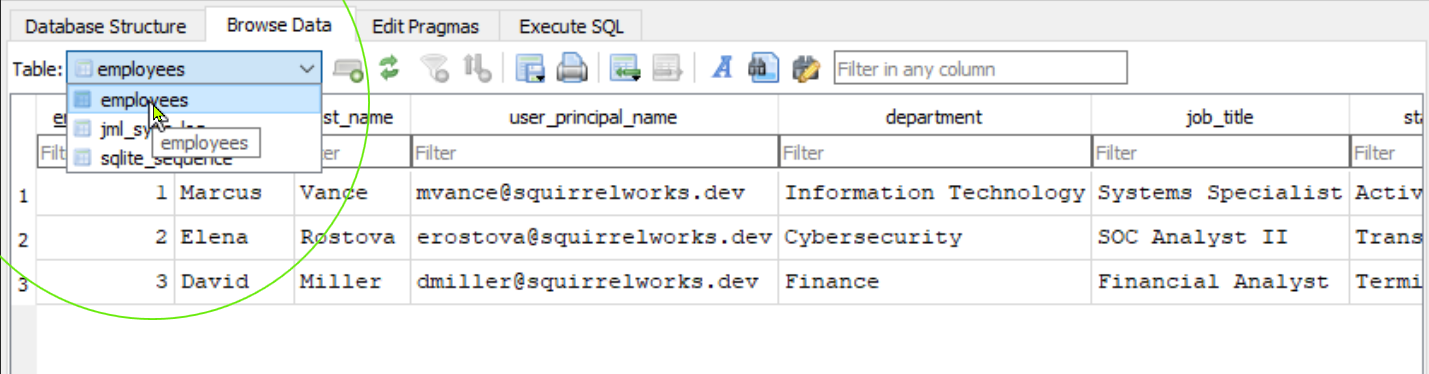

DB Browser for SQLite showing employees table on APP1

Core employee records in hr_system.db defining user states (Active, Transferred, Terminated).

Execution Audit Trail Table

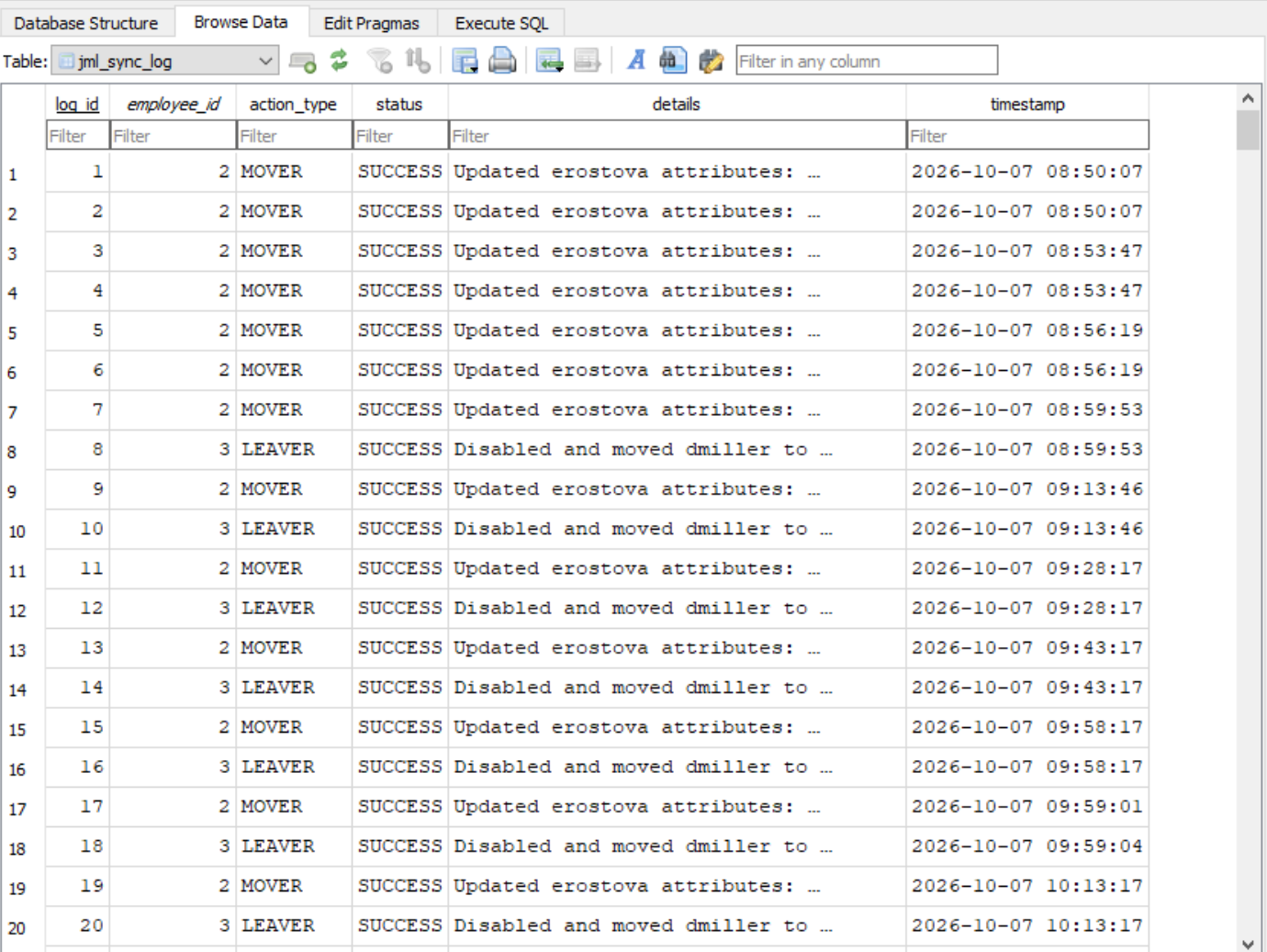

DB Browser for SQLite showing jml_sync_log table on APP1

The jml_sync_log table logging every Joiner, Mover, and Leaver execution timestamp and status detail.

Data Definition Language (DDL) Definition

Strict column constraints ensure data integrity prior to executing Active Directory commands:

-- Core Employee Table
CREATE TABLE IF NOT EXISTS employees (
    employee_id INTEGER PRIMARY KEY AUTOINCREMENT,
    first_name TEXT NOT NULL,
    last_name TEXT NOT NULL,
    user_principal_name TEXT UNIQUE NOT NULL,
    department TEXT NOT NULL,
    job_title TEXT NOT NULL,
    status TEXT CHECK(status IN ('Active', 'Transferred', 'Terminated')) NOT NULL,
    created_at DATETIME DEFAULT CURRENT_TIMESTAMP
);

-- Execution Log Table for Audit & HTML Reporting
CREATE TABLE IF NOT EXISTS jml_sync_log (
    log_id INTEGER PRIMARY KEY AUTOINCREMENT,
    employee_id INTEGER,
    action_type TEXT NOT NULL,
    status TEXT NOT NULL,
    details TEXT,
    timestamp DATETIME DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY(employee_id) REFERENCES employees(employee_id)
);

3. PowerShell Query Patterns via PSSQLite

The synchronization script Invoke-HRIdentitySync.ps1 uses the lightweight PSSQLite module to execute parameterized queries against hr_system.db directly in memory.

# Import module & set path
Import-Module PSSQLite
$dbPath = "C:\IAM_Automation\hr_system.db"

# Query all active employees to drive Joiner logic
$activeUsers = Invoke-SqliteQuery -Database $dbPath -Query "SELECT * FROM employees WHERE status = 'Active'"

# Insert execution audit entry
$logQuery = "INSERT INTO jml_sync_log (employee_id, action_type, status, details) VALUES (1, 'JOINER', 'SUCCESS', 'Account provisioned')"
Invoke-SqliteQuery -Database $dbPath -Query $logQuery

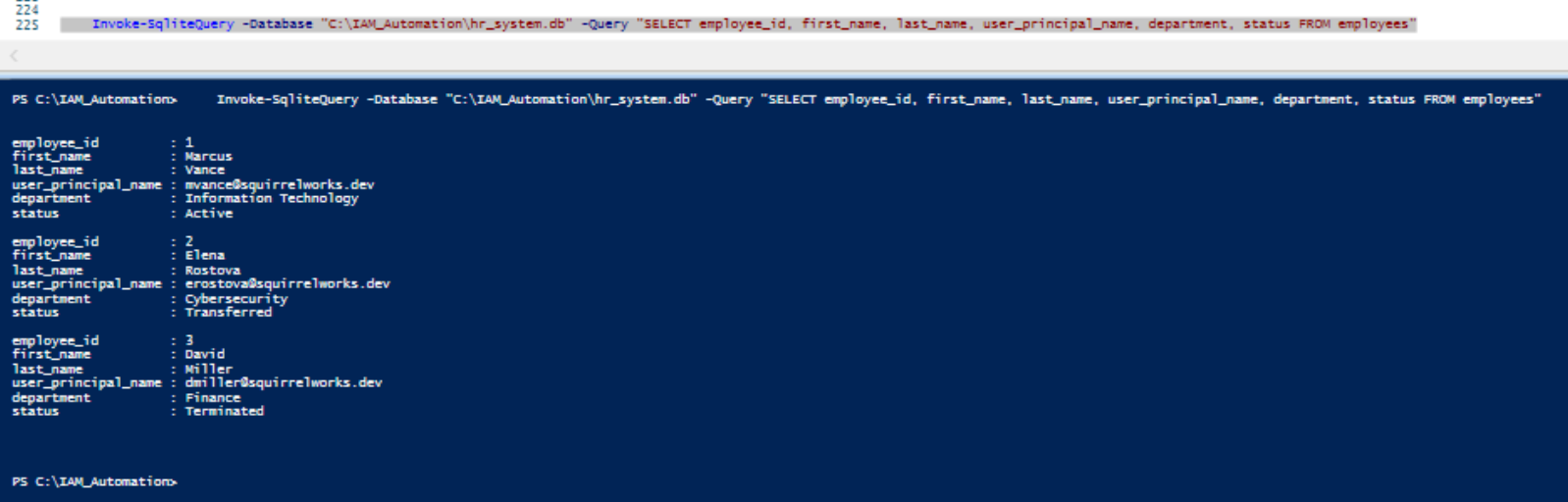

PowerShell SQLite Query Verification on APP1
PowerShell console executing Invoke-SqliteQuery against hr_system.db

Live console query output on host APP1 showing direct evaluation of the employees table via Invoke-SqliteQuery.

Tech Fact Icon
Architecture Key Takeaway

Decoupling HR business logic into an upstream SQLite database allows seamless updates to employee lifecycle states without modifying core Active Directory synchronization logic.
